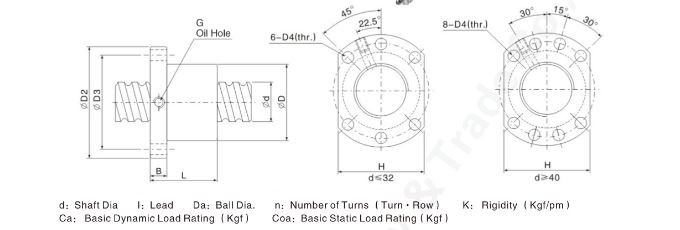

ตะกั่วของบอลสกรูเรียกอีกอย่างว่าพิทช์นั่นคือระยะห่างของการเคลื่อนที่เชิงเส้นของสกรูพิทช์ต่อการหมุน ช่วงนำทั่วไปคือ 1, 2, 4, 6, 8, 10, 16, 20, 25, 32, 40 ผลิตภัณฑ์สปอตนำขนาดเล็กและขนาดกลางโดยทั่วไปมีเพียง 5 และ 10 และผลิตภัณฑ์ตะกั่วขนาดใหญ่คือ 1616, 2020, 2525, 3232, 4040 (สองหลักแรกคือเส้นผ่านศูนย์กลาง และสองหลักสุดท้ายคือตะกั่ว) ดูการผลิตโมโนเมอร์สำหรับข้อมูลจำเพาะของน้ำแข็งสีฟ้า ตะกั่วเกี่ยวข้องกับความเร็วเชิงเส้น เมื่อความเร็วอินพุตคงที่ ยิ่งลีดมากเท่าไหร่ ความเร็วก็จะยิ่งเร็วขึ้น คำแนะนำ Lanbing: ลองเลือกลูกค้าเป้าหมาย 5 และ 10 ราย
The selected lead is related to the required movement speed and system, usually from 4, 5, 6, 8, 10, 12, 20. The size is larger, the lead can also be larger (mainly consider the bearing tooth thickness). When meeting the speed requirements, generally choose a smaller lead (conducive to improving the control accuracy); for high-speed occasions, the lead can be greater than 20; for the ground screw, the lead can be approximately equal to the nominal diameter (under grinding The limit of the helix angle), such as 32 (3232), 40 (4040), of course, it can be larger (non-grinding, but rarely considered). Under the same conditions, the larger the lead, the larger the rotating part, the larger the period error, and the faster the speed. Therefore, flexibility is required at high speeds, and abandoning part of the accuracy requirements will make the gap requirements less significant (increased lead accuracy deviation). Therefore, the large screw is generally a single nut.
Pitch คือระยะห่างระหว่างสองเธรดที่อยู่ติดกัน ระดับเสียงและลีดมีความเกี่ยวข้องกันแต่ไม่ใช่แนวคิดที่เทียบเท่ากัน หลายคนสับสนระหว่าง pitch และ lead แนวคิดของตะกั่วหมายถึงระยะห่างที่น็อตเคลื่อนบนสกรูหลังจากหมุนสกรูหรือน็อตหนึ่งครั้ง หากเป็นบอลสกรู-หัวเดียว ระยะพิทช์และลีดจะเหมือนกัน ในกรณีของสกรูหัวบอล-แบบหลายหัว ระยะพิทช์ของตะกั่ว=จะคูณด้วยจำนวนหัวสกรู หากสกรูเคลื่อนสกรูสี่ (หรือห้า) ตัวต่อรอบ หมายความว่าสกรูนั้นเป็นสกรู-เกลียว (หรือห้า-ลวด) หรือที่เรียกกันทั่วไปว่าหัวสี่- (หรือห้า-หัว) สกรู
